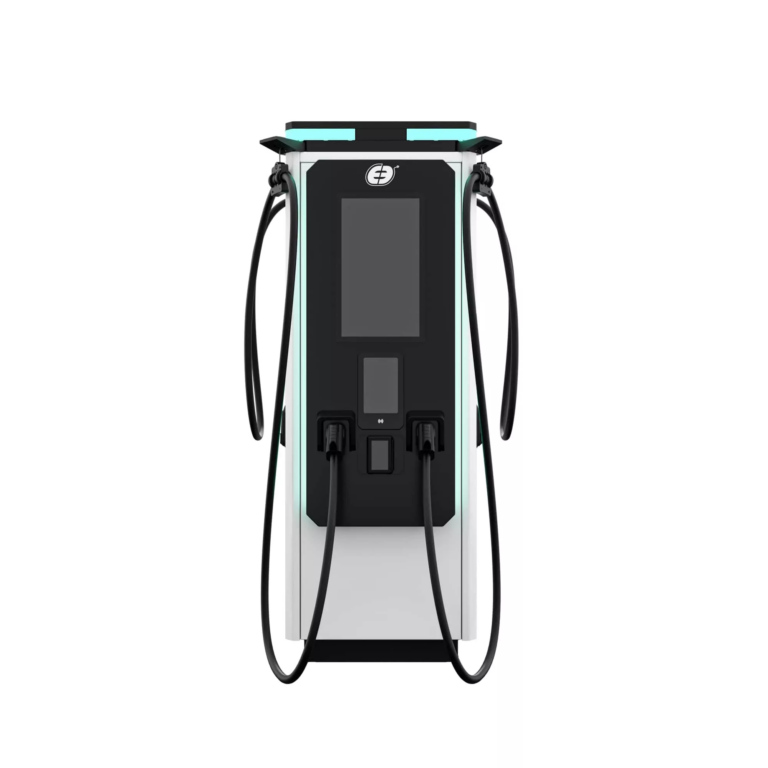

Axon Easy 180
The Axon Easy 180 is a DC all-in-one fast charging station designed for electric vehicles, e-buses and e-trucks. This enhanced product redefines charging standards by offering innovative features and configurable options while maintaining maximum efficiency.
• Available in 60, 90, 120, 150, and 180 kW DC
• Maximum charging current: up to 500 A
• 5 charger configuration options
• Power upgrade available from 120 kW to 180 kW
• 2 charging points with AC socket
• 24″ AD display – remote independent content management
• 10″ screen integrated with RFID
• Cable management with flat arm and braking mechanism
• Direct payment with multiple operator and terminal options
• Integrates with all charging service providers
• Supports all electric vehicles
• Plug & Charge ready

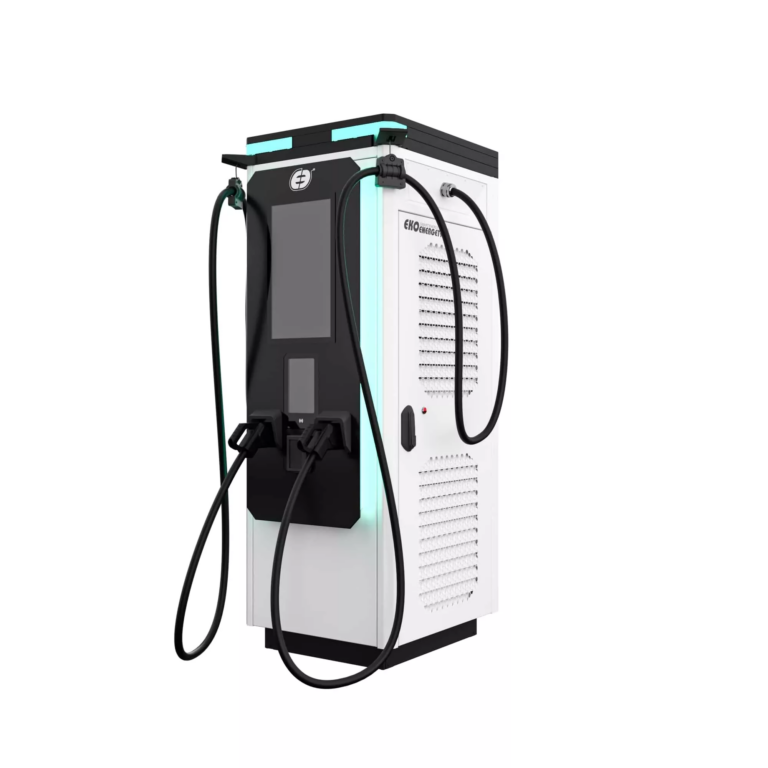

Axon Easy 400 DC
The Axon Easy 400 high-power charging station combines functionality, safety and user convenience, making electric vehicle charging more efficient. Its innovative features ensure intuitive operation, making the charging process simple and enjoyable. This unit is suitable for electric vehicles, including cars, buses and trucks.
• 240, 320, 400 kW
• DC Charging Station All-in-One
• Maximum charging current: up to 500 A
• 6 charger configuration options
• 2 charging points
• Charges up to 2 vehicles simultaneously
• Dynamic Load Balancing System (DLBS)
• 24” AD display – remote independent content management
• Cable management with flat arm and braking mechanism
• Direct payment with multiple operator and terminal options
• Plug & Charge ready
• Integrates with all charging service providers

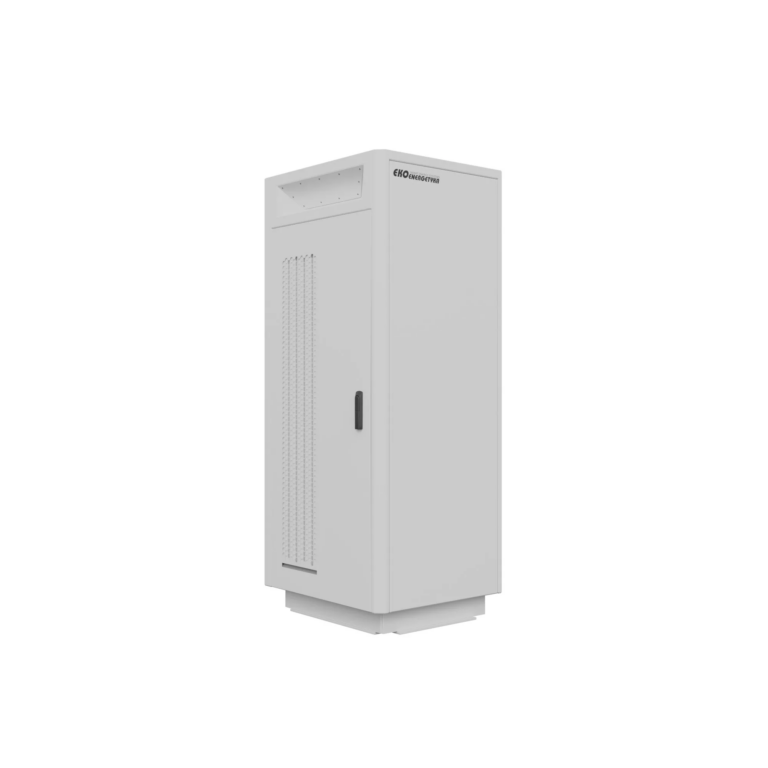

Axon Easy S 180
Axon Easy S 180 is a high-power DC charging station designed for electric vehicles, including buses and trucks. This power unit is ideal for providing efficient and flexible charging solutions, making it a robust choice for expanding charging infrastructure.
• 180 kW DC Charging station – power unit
• Maximum charging current 250 A ( 3 x 200 A)
• Works with 3 satellites
• Connects with Sat Box, Sat One + or Link One pantograph
• Created for the expansion of multi-station charging hubs
• Adapted to integrate with all charging service providers
• Supports all electric vehicles 2 charging points with AC

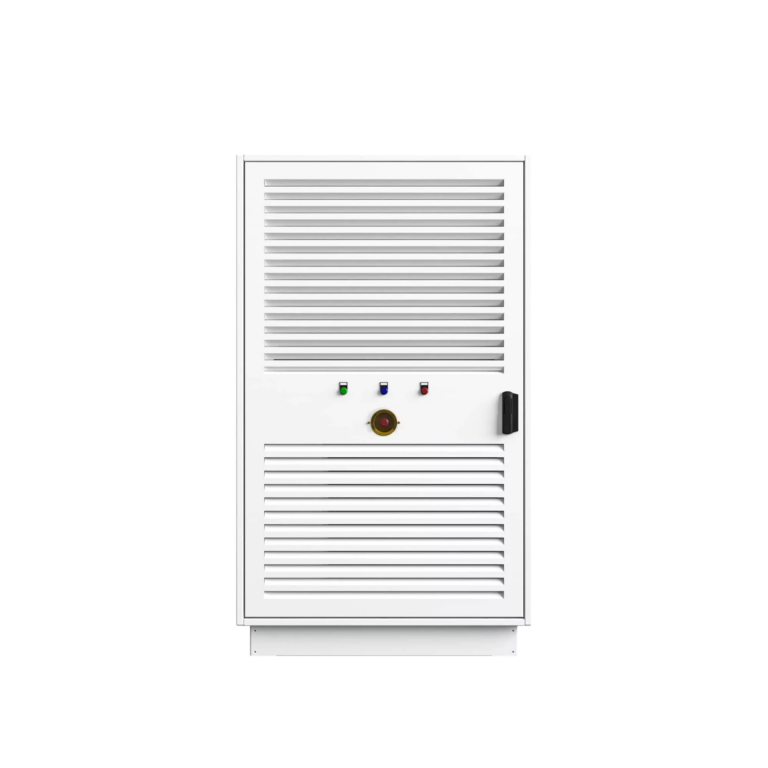

Axon Side 180
The Axon Side 180 is a high-power DC charging station for electric buses and trucks. This power unit is ideal for creating and expanding multi-station charging hubs, providing fast and efficient charging for heavier electric vehicles.
• 180 kW DC Charging station – power unit
• Maximum charging current up to 500 A (2 x 300 A)
• Works with 1 or 2 satellites
• Connection with Sat Box, Sat One + or Link One pantograph
• Created and expansion of multi-station charging hubs
• Adapted to integrate with all charging service providers
• Supports all electric vehicles

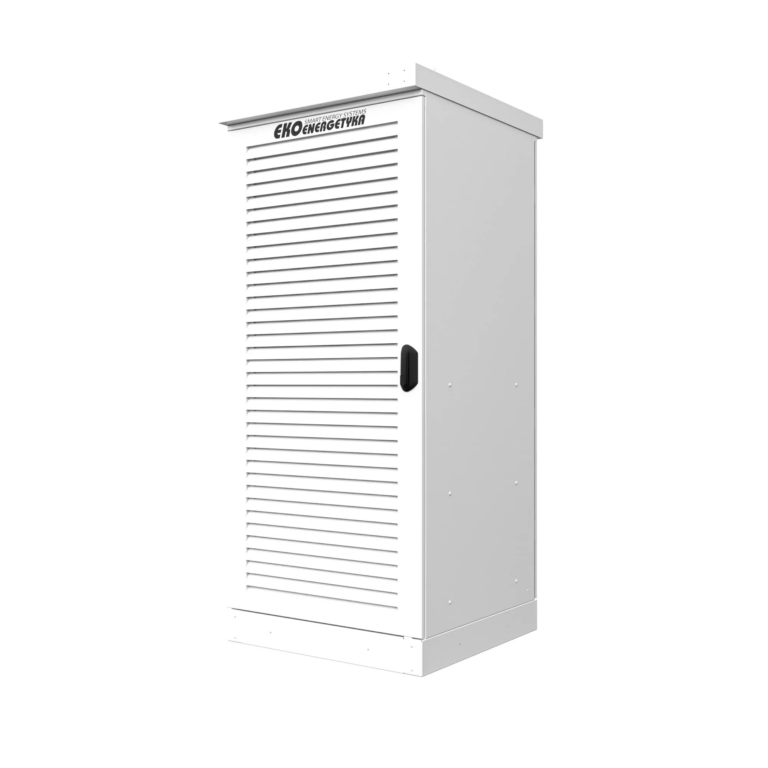

Axon Side 360 DLBS
The Axon Side 360 DLBS Intelligent Power Unit is a ready-made solution for connecting satellites and expanding charging hubs. It supports up to 6 outputs, allowing for optimal configuration based on the site-specific needs. This unit is suitable for electric vehicles, including cars, buses and trucks.
• 360 kW DC
• Dynamic Load Balancing System (DLBS)
• Maximum charging current: 500 A per output, 1200 A total
• Supports 6 satellites
• Charging power adjusts based on EV requests
• Optimal distribution of excess power between vehicles
• Power switching resolution: 60 kW
• Compatible with SAT 400, SAT 600, SAT Box, Sat One+
• Integrates with all charging service providers
• Created for expanding multi-station charging hubs

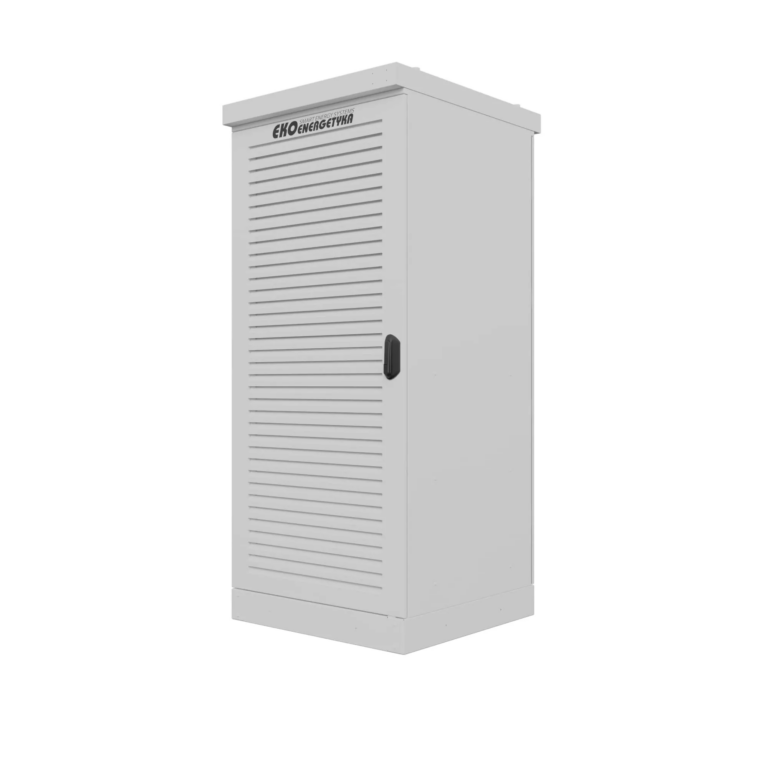

Axon Side 400
The Axon Side 400 is a high-power DC charging station designed for electric vehicles, including buses and trucks. This power unit is ideal for providing fast and efficient charging solutions, making it a robust choice for expanding charging infrastructure.
• 400 kW DC Charging station – power unit
• Maximum charging current – 1 x 750 A / 2 x 600 A
• Works with 1 satellite or 2 satellites
• Ready for connecting with SAT 600, SAT 400
• Created for expansion of multi-station charging hubs
• Adapted to integrate with all charging service providers

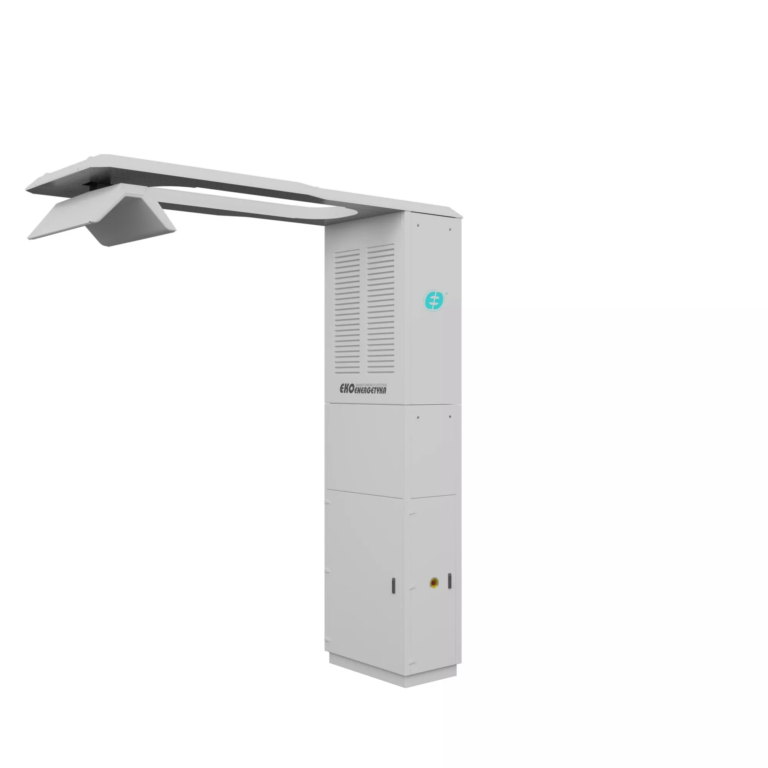

Link Charger Pantograph
Link Charger is a high-power DC charging station designed specifically for electric buses. This charger is designed to provide efficient and reliable high-power charging for electric buses, ensuring they can be quickly and effectively charged to meet operational demands.
• Available in 300, 400, and 500 kW DC
• Mast charger in an integrated monolithic housing
• Options: Contact dome (panto up) and inverted (panto down)
• LED charging status indicator
• Integrates with all charging service providers
• Maximum charging current:
o 300 kW – 500 A (PU, PD)
o 400 kW – 600 A (PU), 666 A (PD)
o 500 kW – 600 A (PU), 833 A (PD)

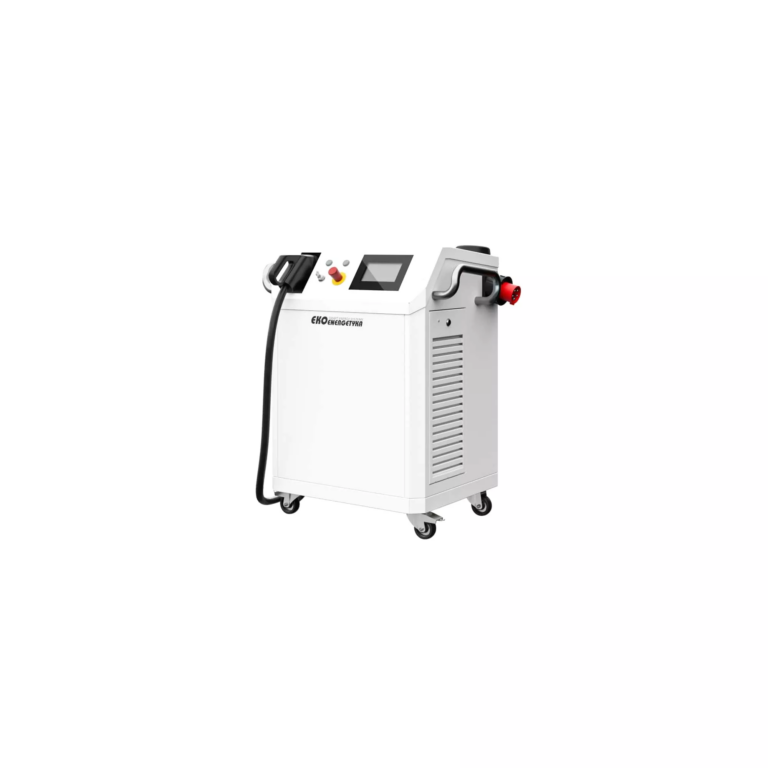

Plug Charger 40 60
The Plug Charger 40/60 is a mobile DC charging station designed for electric buses and trucks. This charger is ideal for flexible and efficient charging of large electric vehicles, ensuring seamless operation even in areas with limited power infrastructure.
• 80 kW DC
• Maximum charging current: 133 A
• 2 charging points
• Operation in locations with lower power outlet
• Intuitive and versatile 7″ touchscreen with RFID
• Operates independently of charging service providers

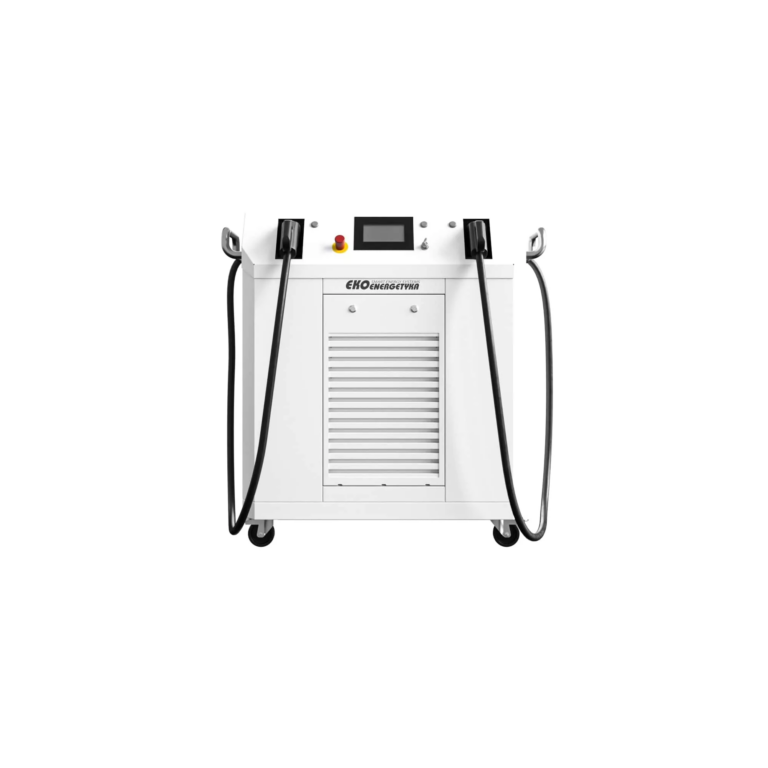

Plug Charger 80
Plug Charger 80 is a mobile DC charging station for electric buses and trucks. This charger is ideal for providing efficient and flexible charging solutions for large electric vehicles, ensuring reliable operation even in areas with limited power infrastructure.
• 80 kW DC charging station – mobile
• Maximum charging current: 133 A
• 2 Charging points
• Operation in locations with lower power outlet
• Intuitive and Versatile 7″ touchscreen with RFID
• Operates independently of charging service providers

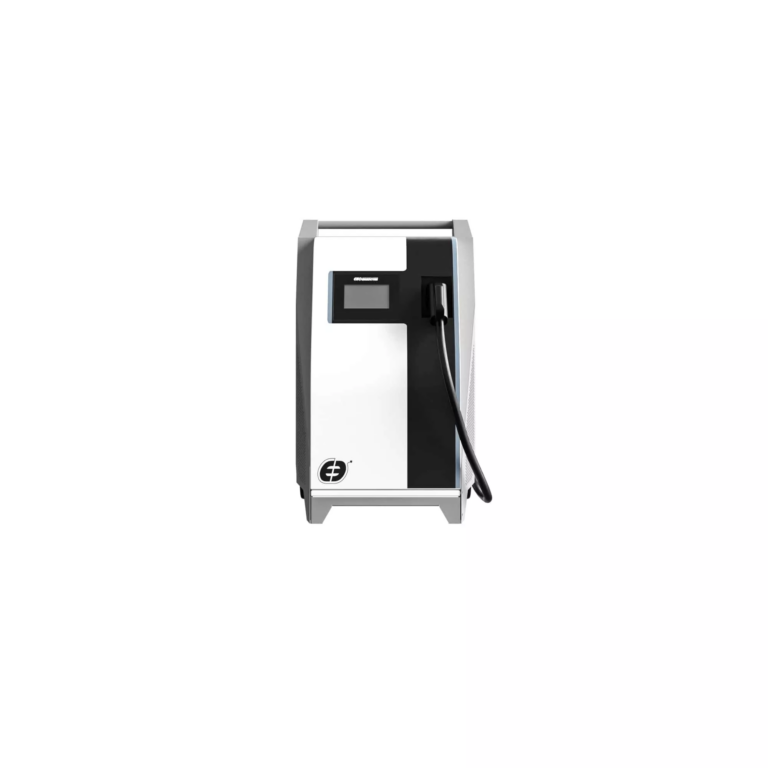

Plug Charger Go
Plug Charger GO is a mobile DC charging station designed for electric cars, buses and trucks. This charger is ideal for providing flexible and efficient charging solutions in various locations, ensuring that electric vehicles can be charged conveniently and effectively.
• 30 kW DC
• Maximum charging current: 100 A
• 1 charging point
• Adjustable output power in 1 kW increments
• Intuitive and versatile 7″ touchscreen with RFID
• Operates independently of charging service providers
• Supports all electric vehicles

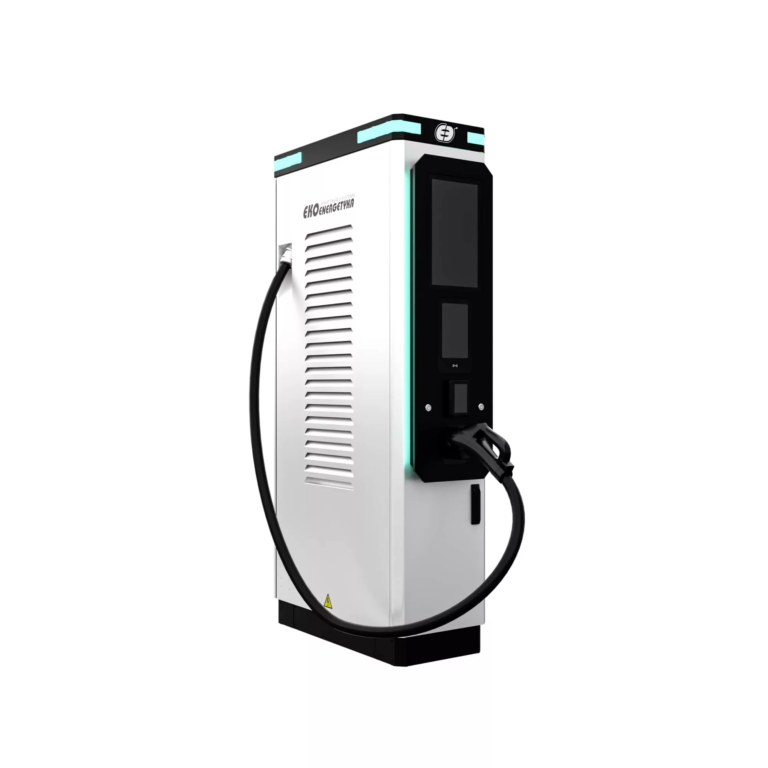

SAT 1500 MCS
The SAT 1500 MCS is a DC solution e-truck charger and part of an advanced megawatt charging system. It supports high voltages and currents up to 1,500 A, enabling the charging of heavy-duty electric vehicles with more than 1 MW of power. This reduces charging time to approximately 35 minutes, fitting conveniently within a driver’s break.
• MCS Satellite compatible with high-power charging stations
• Maximum charging current: 1500 A (MCS), 600 A (CCS HPC)
• Three configuration versions: MCS, MCS CCS HPC, CCS HPC
• Supports up to 2 charging points per satellite
• Operated via an intuitive 10” screen integrated with RFID
• Cable lengths: MCS – 3.5 m, CCS HPC – 3.5 / 4.5 m
• 19″ advertising screen with independent content management
• LED charging status indicator with 360-degree visibility
• Selection of operators and payment terminals
• Service access from three sides of the satellite
• Ready to connect to power unit Axon Side 360 DLBS
• Supports trucks and all electric vehicles with CCS sockets
• Integrates with all charging service providers

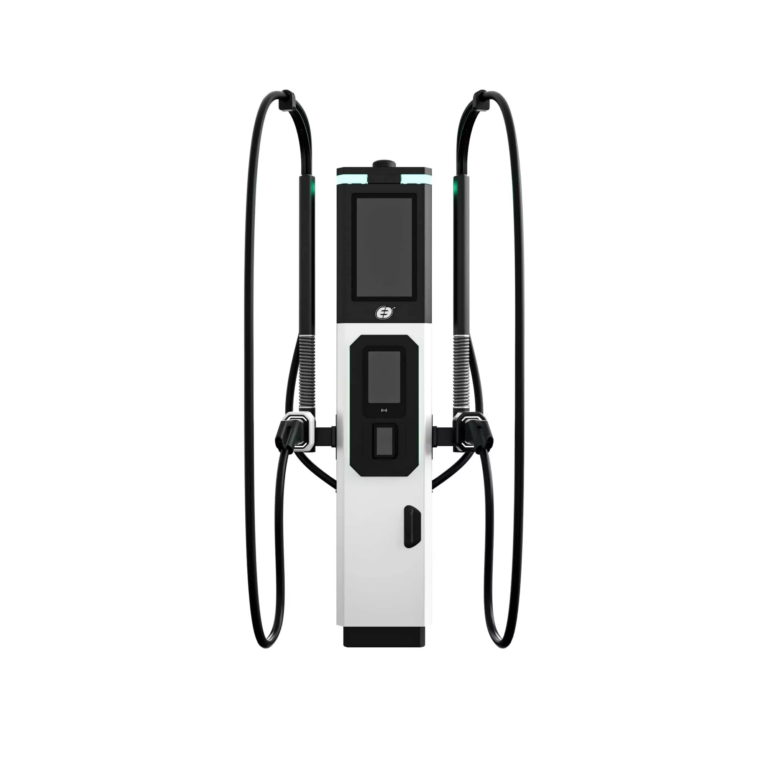

SAT 400
The SAT 400 Satellite – DC split solution unit is available in various configurations to perfectly match the potential of any specific location. It is suitable for electric vehicles, including cars, buses and trucks.
• Compatible with high-power charging stations
• Maximum charging current: 400 A (up to 500 A)
• Cable management – 270-degree rotating arm and 4.5m reach
• Supports up to 2 charging points per satellite
• 10″ screen with integrated RFID card reader
• Optional screen and payment terminal on both sides
• 19″ AD display – remote independent content management
• Direct payment with multiple operator and terminal options
• LED charging point status with 360-degree visibility
• 5.5 m CCS cable
• Supports all electric vehicles with CCS sockets
• Integrates with all charging service providers
• Connects to power unit Axon Side 360 DLBS (up to 65 points)

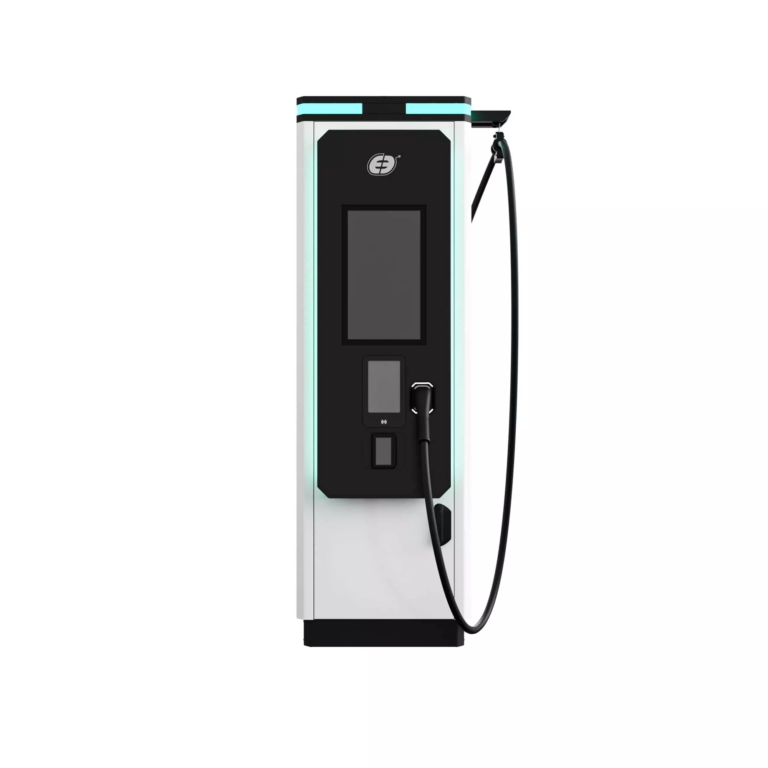

SAT 600
The SAT 600 DC split solution is a resilient satellite for high-power charging. When integrated with high-performance power units, it creates state-of-the-art charging systems that meet the fast charging needs of electric vehicles, handling more power than most systems on the market. The SAT 600 combines advanced technology with convenience, providing top-tier service for passenger cars, buses and trucks.
• Satellite compatible with high-power charging stations
• Maximum charging current: 500 A (up to 600 A)
• 1 charging point
• Liquid-cooled connector
• 10″ screen with integrated RFID card reader
• Optional 24″ screen – remote content management
• Direct payment with multiple operator and terminal options
• LED indicating charging status with 360-degree visibility
• Cable management with flat arm and braking mechanism
• CCS HPC cable: 4.5 m (up to 8 m)
• Supports all electric vehicles with CCS sockets
• Connection to Axon Side 400, Axon Side 360 DLBS

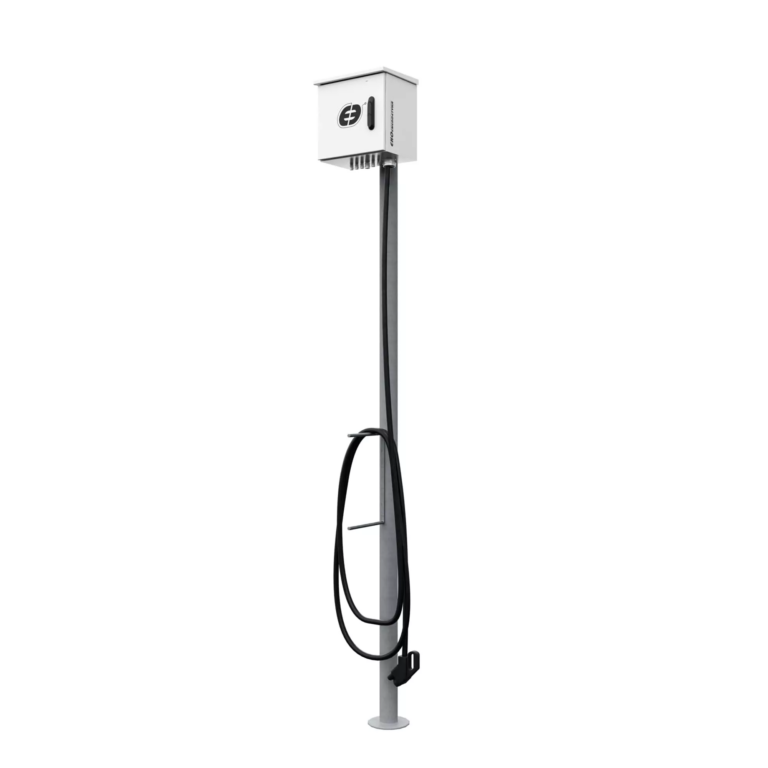

SAT Box
Sat Box is a satellite DC split solution user unit designed to support the charging of electric buses and trucks. This unit enhances the flexibility and efficiency of charging infrastructure, making it a robust solution for various electric vehicle charging needs.
• Satellite unit supporting the charging station
• Maximum charging current: 250 A
• Charging points: 1
• Satellite version with a cable reel
• Signal column, mounting pole
• Connects to Axon Easy S 180, Axon Side 180 and 360 DLBS

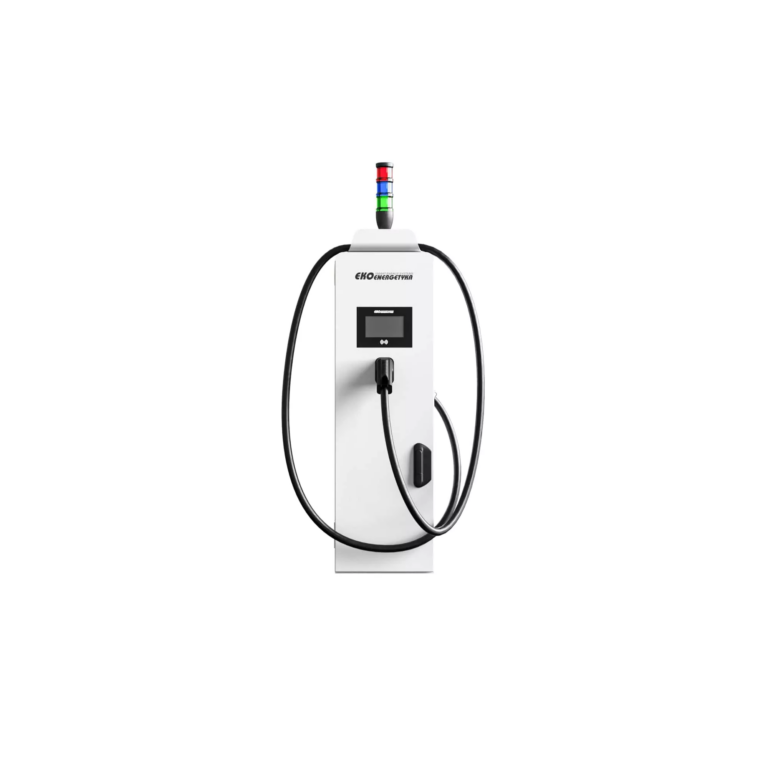

SAT One+
The Sat One+ is a satellite DC split solution user unit designed to support the charging of electric cars, buses and trucks. This unit enhances the flexibility and efficiency of charging infrastructure, making it a robust solution for various electric vehicle charging needs
• Satellite supporting the charging station
• Maximum charging current: 400 A (up to 500 A)
• 1 Charging point
• 7″ Display integrated with RFID card reader
• Signal column
• Connects to Axon Easy S 180, Axon Side 180 and 360 DLBS
