Home / Products / EV ChargeLOG

Design freely, manage centrally, master your EV charging fleet


1

Control up to 32 chargers outlets

A single terminal can manage up to 32 chargers outlets (AC/DC), accommodating various types and brands seamlessly.


2

No hidden cost

No monthly fee per charger - one system for all. LOGmaster software offers a transparent, one-time investment, ensuring a fully inclusive system with no recurring charger fees or unexpected expenses.


3

Smart charging

ChargeLOG's functionalities enhance electric vehicle charging efficiency and smartly optimise energy usage, aligning with modern energy management standards.

ChargeLOG signature features

Charging Periods & Quotas for EV Vehicles Smart & Simultaneous Charging Specific rules for EV vehicles EV Specific Data Charging Process & Offline Behaviour
Charging Periods & Quotas for EV Vehicles

Charging Periods & Quotas for EV Vehicles

The terminal’s ‘Period Authorised’ feature for EV chargers enhances efficiency by enforcing pre-set charging schedules. Any charging outside these designated timeframes is automatically terminated, ensuring compliance. Additionally, the system supports delayed activation periods, with charging sessions beginning only during specified times, allowing for unique scheduling per charger to accommodate diverse site requirements.

ChargeLOG enables the setting of charging quotas for electric vehicles in kWh, minutes or usage instances (activations). The system simplifies EV charging management by applying presets to the amount, duration or frequency of charges a vehicle can receive, such as weekly or monthly limits.

ChargeLOG
Smart & Simultaneous Charging

Smart & Simultaneous Charging

ChargeLOG incorporates smart charging to optimise EV charger power management according to available energy. It includes features such as individual charger power limits, group charging limits and delayed sessions. The system aims to automate and enhance charging efficiency, particularly through load balancing, which distributes power among vehicles to ensure effective energy use and maintain system performance.

ChargeLOG’s ‘Simultaneous Services Limitation’ feature controls the number of concurrent charging sessions, particularly in areas with limited power capacity. It queues new charging requests once the set limit is reached and activates them as slots become available. This ensures efficient power distribution and prevents electrical system overload.

Download brochure
ChargeLOG
Specific rules for EV vehicles

Specific rules for EV vehicles

– Deactivation on Low Charge Rate: ChargeLOG can end a charging session if the charge rate drops below a configurable minimum value. This feature is especially useful for preventing inefficiencies, such as extended charging times when the battery level is already high (above 90%). It ensures optimal use of charging resources and time.

– Minimal Final Battery Load: ChargeLOG can be programmed to issue an alert if a charging session is stopped before the EV’s battery reaches a pre-defined minimum level, for example, 80%. This safeguard ensures that vehicles have adequate charge for their intended use.

– ChargeLOG can be set to alert users if a charging session ends before the EV’s battery reaches a specified minimum level, such as 80%. This feature ensures that vehicles have sufficient charge for their intended use.

– Maximum Duration: ChargeLOG sets a limit on the length of each charging session to prevent excessively long or forgotten charges. This cap ensures efficient use of the charging station.

- Charging Period: ChargeLOG enables the setting of specific times (e.g., ‘Nighttime’) when EV charging is allowed. This feature can optimize energy usage and costs, especially if it coincides with off-peak electricity hours or operational needs.

Download brochure
ChargeLOG
EV Specific Data

EV Specific Data

LOGmaster captures critical EV transaction data, including date, time and vehicle ID, as well as specific details like kWh quantity, consumption metrics and session duration. It offers advanced monitoring with reference consumption values and enables in-depth analysis through detailed reports in formats such as Excel and PDF. These reports cover charging frequency per vehicle and electricity consumption, which are essential for optimising charging strategies and managing energy effectively.

Download brochure
ChargeLOG
Charging Process & Offline Behaviour

Charging Process & Offline Behaviour

To initiate EV charging, users can either use a ChargeLOG terminal or an EV charger’s tag reader. The ChargeLOG terminal always manages activation, even when the charger’s reader is used. If compatible, the same tag can be used for both. Remote activation and deactivation are available through LOGmaster, with terminal confirmation needed. Although charging sessions are not monitored under MID, they are recorded with EV-specific data for tracking, similar to fuel transactions.

Offline Behaviour
The ChargeLOG terminal guarantees continuous operation even without an internet connection by performing local backups and securely storing transaction data. It remains fully functional offline and automatically syncs with LOG2host upon reconnection. This system ensures data integrity and keeps the terminal updated. ChargeLOG’s local backup system further ensures reliable, uninterrupted operation, automatically updating the cloud when the connection is restored, which is crucial for maintaining continuous charging infrastructure operations.

Download brochure
ChargeLOG

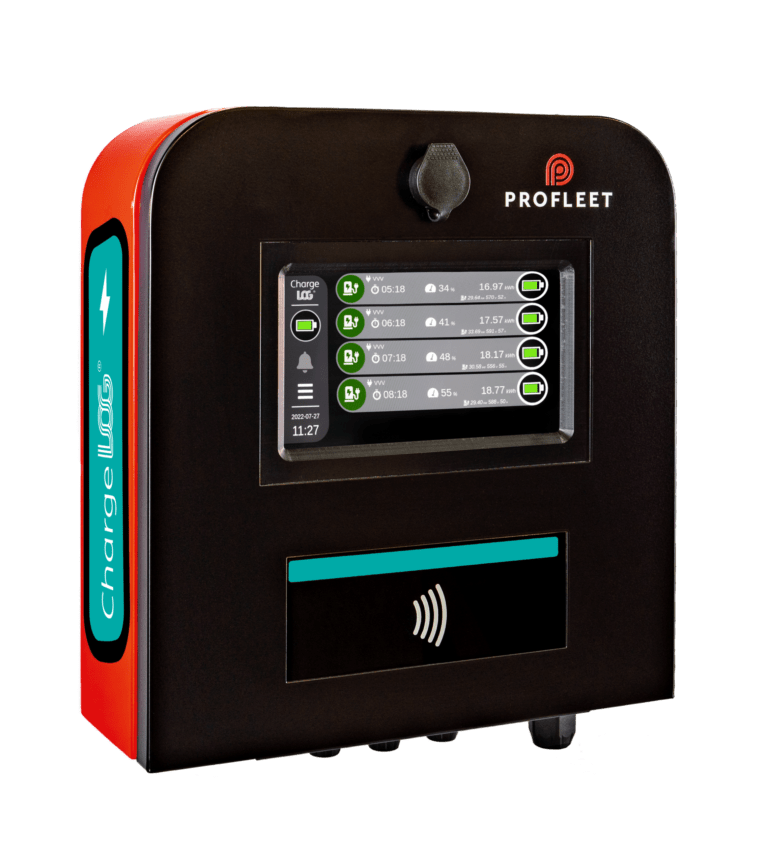

Compact Wallbox

Compact version of the ChargeLOG solution, suitable for installations having limited space. The Wallbox offers the same software functionalities and identical touchscreen, but does not have the possibility for additional hardware options.

  • Design

    Sleek and contemporary design. Robust frames with protective coated panels. Longevity, even in the harshest conditions. One of the smallest footprints

  • Touchscreen

    Swift user interaction. Optimal height and angle. Rigid, industrial quality. On-site communication

  • Authorisation

    Easy identification. Secured wireless tags. One tag for all. Other options: magstripe cards, barcode reader, or automatic vehicle identification.

  • Options

    Additional space to upgrade the terminal with extra features. Best-in-class ticket printer. Barcode reader. 4G router, and more...

ChargeLOG: Universal Benefits for All Site Users

For end users

Familiar operation - activate charger like other equipment

User friendly touch screen, possibility to indicate priority

Identification possible at terminal or charger

For site operators

Extensive functionalities for comprehensive charging management

Smart charging features, incl. load balancing

Higher reliability due to offline availability thanks to locally replicated database

For technicians

Preventive maintenance based on time in operation per socket or duration

Timely response based on alarms and malfunction information

For ICT

Uniform system enabling streamlined IT operations

Work inside local network, or fully cloud based

Export charging transactions (automatically) in various formats

ChargeLOG
ChargeLOG ev charging monitoring

ChargeLOG specifications & Configuration for the Standalone and Wall box terminal

Download the ChargeLOG specifications

Download
